Compact 515nm, 530nm and 532nm Green Lasers
Compact 515nm, 530nm and 532nm Green Lasers
Regular price
$2,200.00 USD
Regular price
Sale price
$2,200.00 USD
Unit price
per
Shipping calculated at checkout.

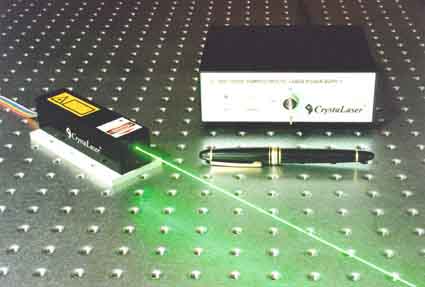

Compact laser with power supply
Couldn't load pickup availability
-
Green lasers - available laser wavelength from 505nm, 515nm, 520nm, 527nm 530nm, 532nm and 545nm, for any other wavelength from 495 nm to 561nm is availaible
- Compact size easily fit in optical paths
- option of TTL modulation, analog modulation, laser power display are available.
- Isolators with high power handling option with single mode fiber coupling and multi-mode fiber coupling is available.
- Single stage and Dual-stage optical isolators provide double isolation up to 60dB for single mode fiber coupling.
- Compact Faraday Rotator provides customer required rotation angle with high transmission of 98% to 99.8%
If you have optical isolator requirements, please contact CrystaLaser directly.
Please download the Specifications of the green lasers
Compact Violet Blue Lasers
Features
Features
Compact size easily fit in optical instruments.
Single longitudinal mode laser provide 10 to 1000 meter coherence length
Low noise laser provide stable output power.
Options available with extra cost, please contact CrystaLaser sales team
- TTL on/off modulation
- Analog output power control
- Fiber coupling to SM, PM, MM fiber FC/PC or FC/APC output
- Up-grade to CL-2005 laser power supply , which provides adjustable and displaying output power for matched laser head.
Dimensions
Dimensions
Laser head
3 x 3 x 12 cm with a fixed 6 mm thick base plate. Type 1 laser head
Power supply
AC: 5x14x15 cm DC: 3.5x8.5x12.7 cm
Care Instructions
Care Instructions
Caution! Danger! Class 3B laser products, Avoid exposure to laser beam. CW output power 10 mW to 499 mW
