CrystaLaser

900 nm -1122 nm Optical Isolators

900 nm -1122 nm Optical Isolators

Regular price $1,194.00 USD
Regular price Sale price $1,194.00 USD
Sale Sold out
Shipping calculated at checkout.
Center Wavelength
Aperture Diameter
Style

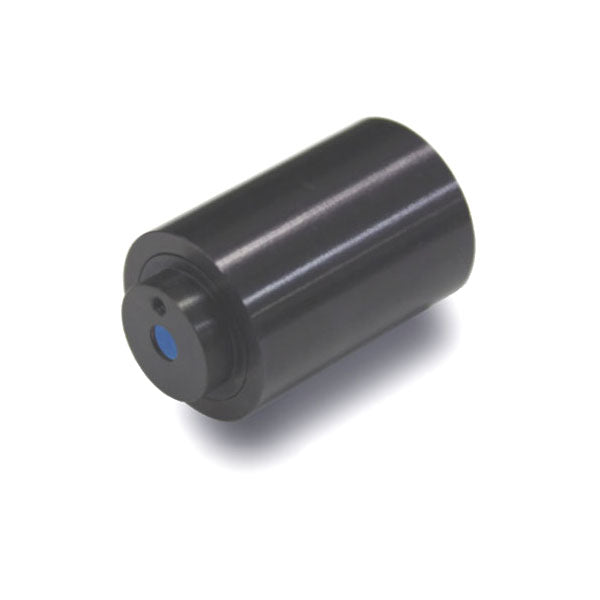

Compact optical isolator

Optical isolator for any wavelength between 340nm-1680nm is available. you may select your preferred center wavelength

Features

Compact size easily fit in optical paths.

Single stage optical isolator provide 33dB (Tr=0.05%) isolation and 93% transmission.

Dual-stage otical isolators provide doubled isolation up to 60dB and 88% transmission

High power optical isolator with input and output rejecting beam exits Exits (E-version) should be selected if forward laser >3 W or rejected laser power >0.5 W. Compact Faraday Rotator provides customer required rotation angle with high transmission of 98% to 99.8% for all available wavelengths

Dimensions

Outside Diameter 18mm and OD 21mm

Length from 20 mm to 55 mm for single stage isolator.

Dual stage isolator lenth from 35 mm to 70 mm.

OD 25mm for some aperture 5mm isolators

Care Instructions

Caution! Strong magnets, handle with care.
