CrystaLaser

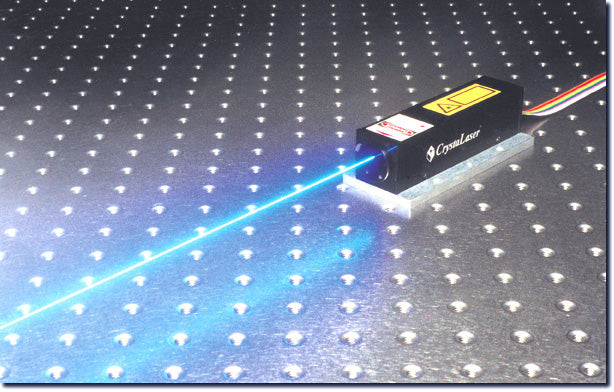

Compact UV blue and violet lasers 375nm to 488nm

Compact UV blue and violet lasers 375nm to 488nm

Regular price $7,190.00 USD
Regular price Sale price $7,190.00 USD
Sale Sold out
Shipping calculated at checkout.
Laser Wavelength
Output power
Longitudinal mode and typical spectrum linewidth

Compact laser with power supply

  • UV violet blue lasers - available laser wavelength from 375nm, 380nm 385nm 395nm 400nm and 405nm, for any other wavelength from 370 nm to 400nm are available.
  • Compact size easily fit in optical paths
  • Violet blue laser 375 nm, 405 nm, 390-425 nm, 430 nm, 445 nm, 456 nm, 473 nm and 488 nm
  • option of TTL modulation, analog modulation, laser power display are available.
  • Isolators with high power handling option with single mode fiber coupling and multi-mode fiber coupling is available.
  • Single stage and Dual-stage optical isolators provide double isolation up to 60dB for single mode fiber coupling.
  • Compact Faraday Rotator provides customer required rotation angle with high transmission of 98% to 99.8%

If you have optical isolator requirements, please contact CrystaLaser directly.
Please download the Specifications of the Blue violet lasers




Compact Violet Blue Lasers

Blue UV violet laser Specifications

Features

Compact size easily fit in optical instruments.

Single longitudinal mode laser provide 10 to 1000 meter coherence length

Low noise laser provide stable output power.

Options available with extra cost, please contact CrystaLaser sales team

  • TTL on/off modulation
  • Analog output power control
  • Fiber coupling to SM, PM, MM fiber FC/PC or FC/APC output
  • Up-grade to CL-2005 laser power supply , which provides adjustable and displaying output power for matched laser head.

Dimensions

Laser head
3 x 3 x 12 cm with a fixed 6 mm thick base plate. Type 1 laser head

Power supply
AC: 5x14x15 cm     DC: 3.5x8.5x12.7 cm

Care Instructions

Caution! Danger! Class 3B laser products, Avoid exposure to laser beam. CW output power 10 mW to 499 mW
